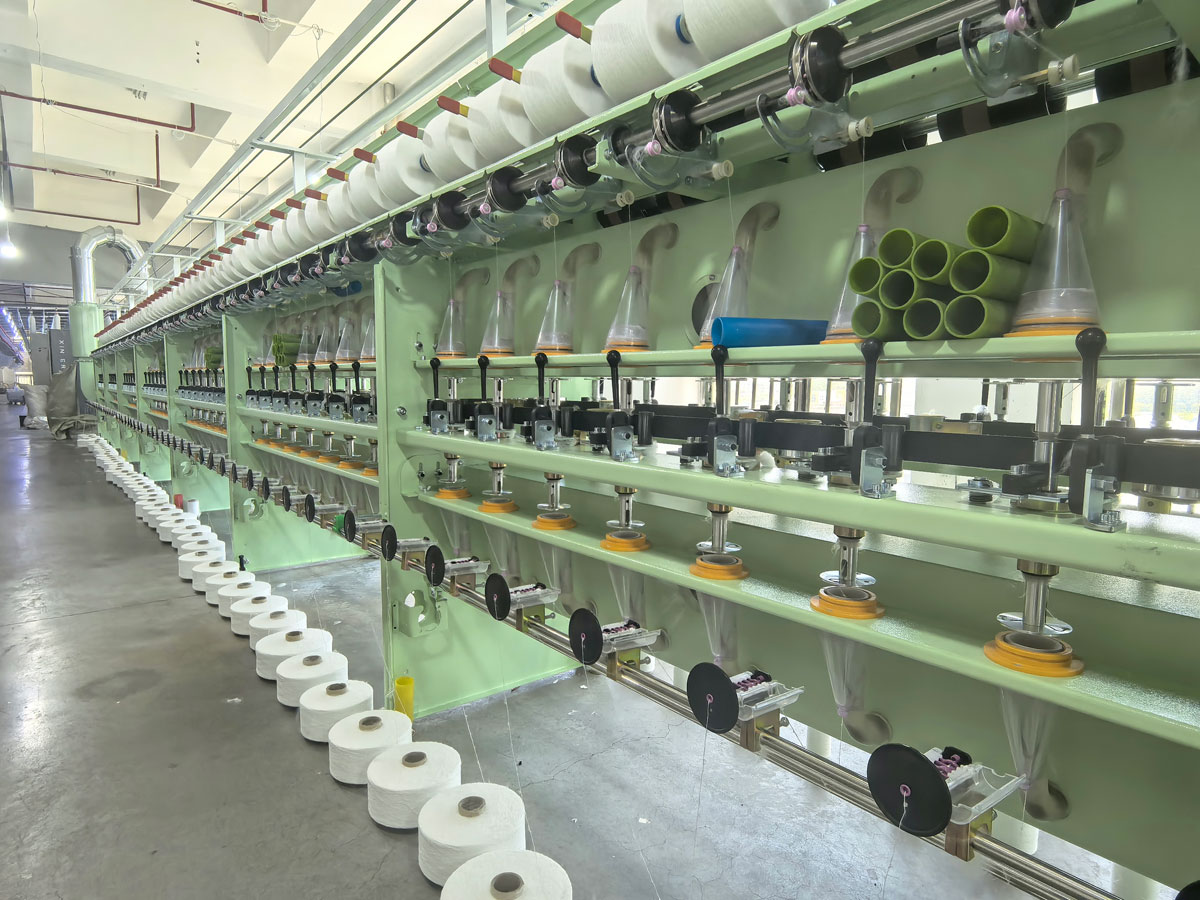

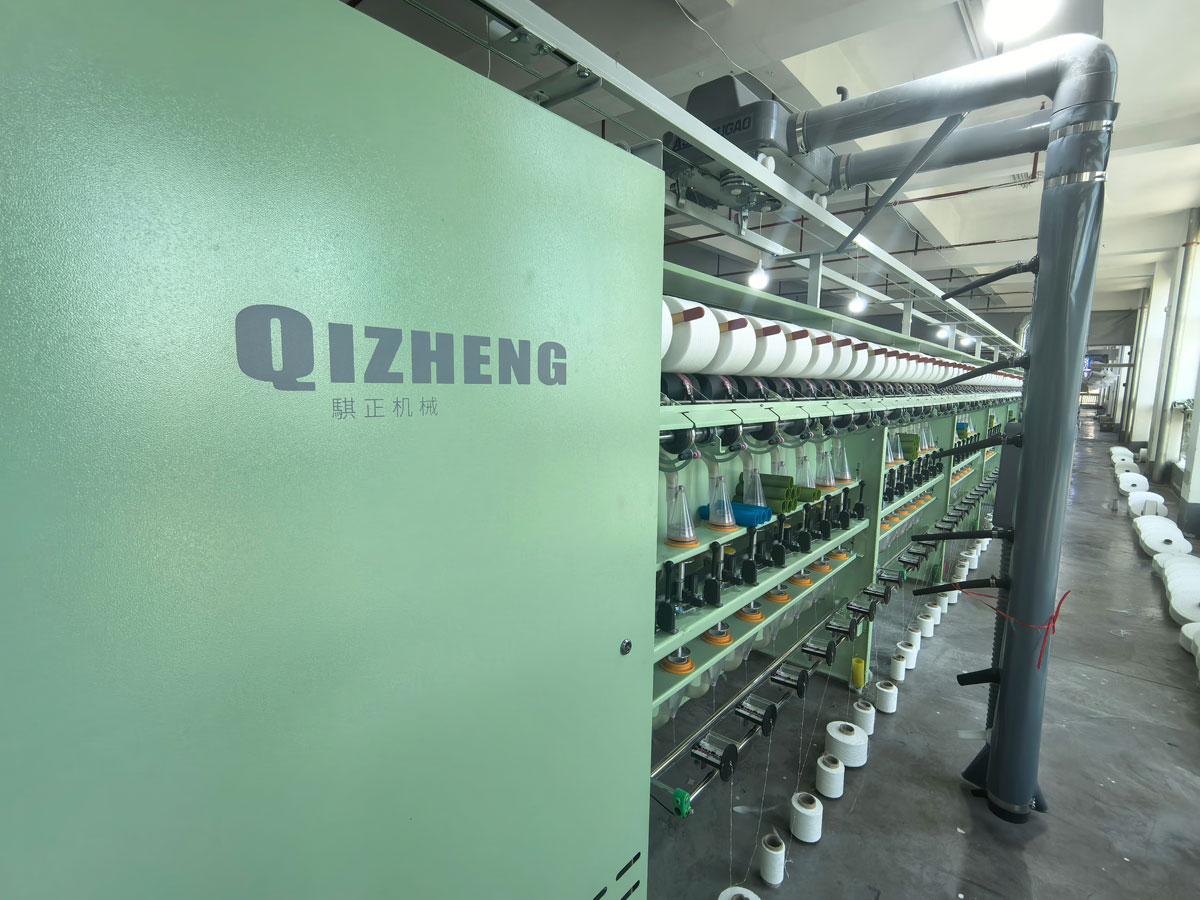

ZKM17 Type High Speed Yarn sanding machine
ZKM17isanewtypeofhighspeedyarnraisingmachine.Itissuitableforfancyyarnsandtraditionalyarnsofwoolandothersyntheticfibers,especiallyforshortyarns. Characteristics: 1.RollerspeedandtwistofyarncanbesetbytheHMItoachievesteplessadjustment,processadjustmentisconvenientandfast; 2.Thismachineisdrivenbyser...
PRODUCT DESCRIPTION
ZKM17 is a new type of high speed yarn raising machine .It is suitable for fancy yarns and traditional yarns of wool and other synthetic fibers, especially for short yarns.
Characteristics:
1.Roller speed and twist of yarn can be set by the HMI to achieve stepless adjustment, process adjustment is convenient and fast;
2.This machine is driven by servomotor and synchronous belt transmission, which is stable and precise, with low breakage rate and high yarn quality.
3.Own independent intellectual property rights,double grinding wheel design，fluff is more uniform，spinning faster.
4.Fan optimization design，with silencer，lower noise，more energy-saving.
5.Optional travelling blow and suction fan，the environment is cleaner.
technical parameters
|
Spindle number |
128 / 144 |
|
Pitch number |
8 |
|
Spindle Gauge |
220 |
|
Raising way |
Double grinding wheels |
|
Tension control mode |
Tensioner conteol |
|
The motor type |
Servo motor |
|
Conduit xize |
170*42*38 |
|
Net size of equipment |
17400*2000(830)*3100 / 19200*2000(830)*3100 |
|
Equipment Power |
15.5 |
