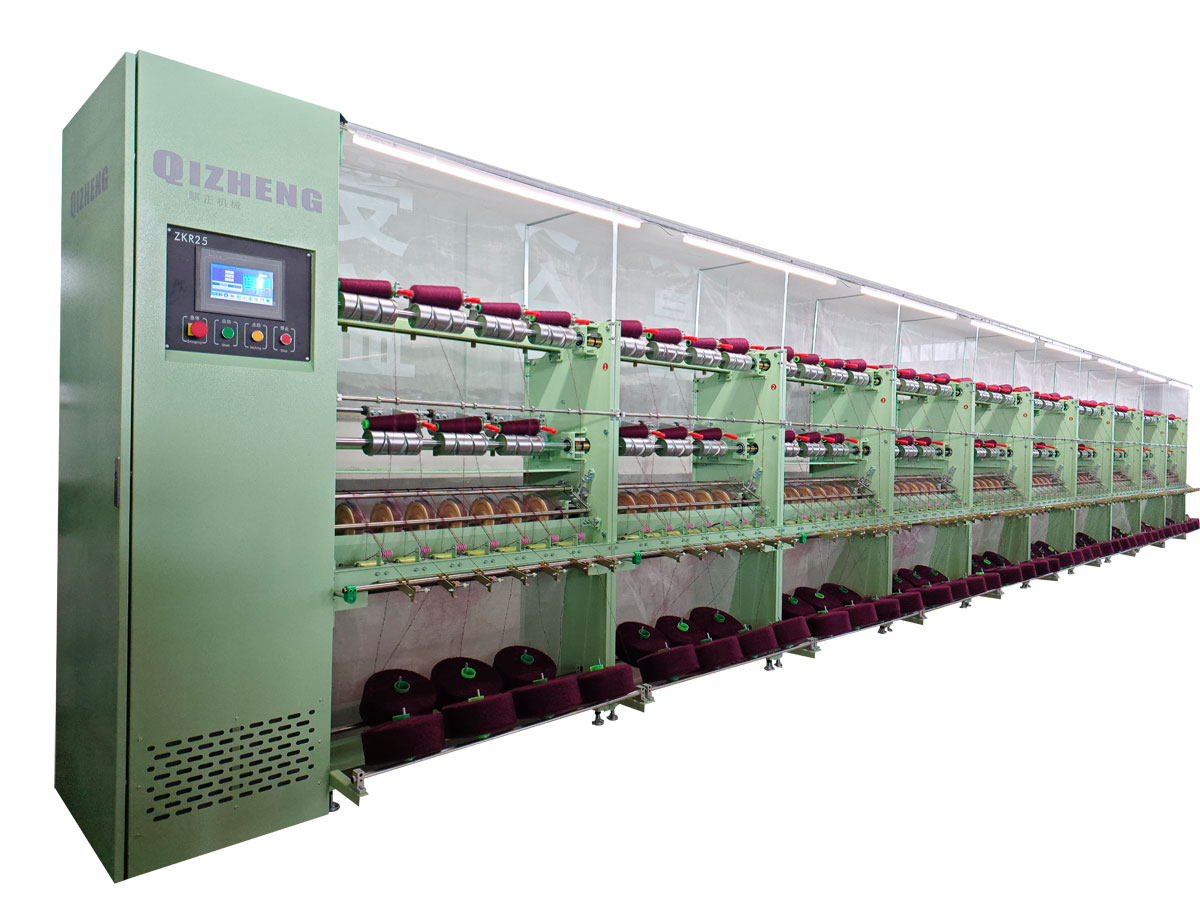

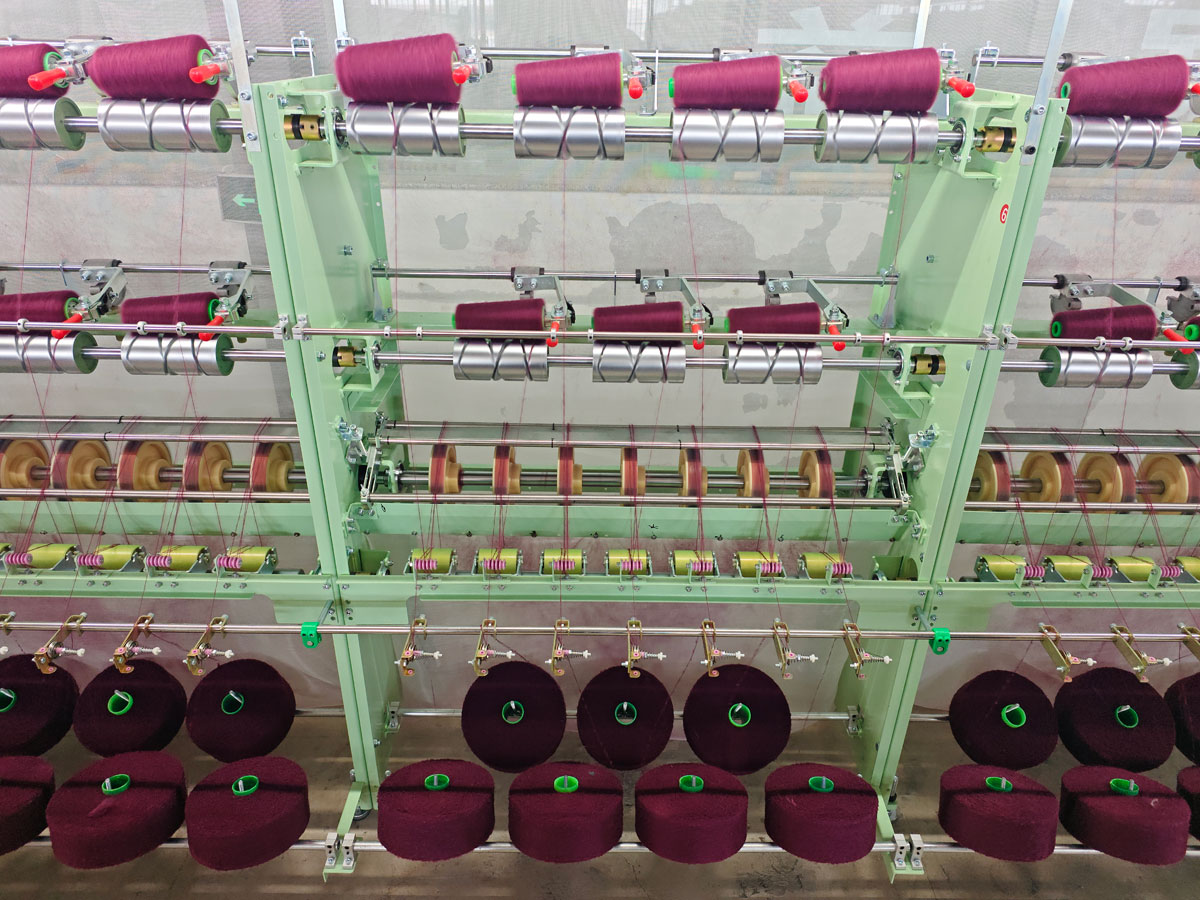

ZKR25 Type Yarn Raising Machine
ZKR25TypeYarnRaisingMachineissuitableforcardingfancyyarnsofwoolenfibersandothersyntheticfibers.Productfeatures:1.Therollerspeedandwindingspeedcanbesetthroughthehuman-machineinterface,makingprocessadjustmentconvenientandfast;2.Adoptingservomotordriveandsynchronousbelttransmission,thetransmissionis...
PRODUCT DESCRIPTION
ZKR25 Type Yarn Raising Machine is suitable for carding fancy yarns of woolen fibers and other synthetic fibers.
Product features:
1. The roller speed and winding speed can be set through the human-machine interface, making process adjustment convenient and fast;
2. Adopting servo motor drive and synchronous belt transmission, the transmission is precise and stable, effectively reducing the breakage rate and improving the quality of the yarn;
3. The distance between the yarn and the roller disc needle cloth is precisely adjustable, and the fuzzing coefficient is adjustable. Flexible process parameters can produce high-quality and diverse styles of fuzzing yarn.
4. The precise mechanical design structure improves the stability of high-speed operation of the whole machine, and the yarn output speed can reach 80 meters per minute within the allowable range of the process.
5. The equipment has a power-off synchronous parking function, which can prevent accidental power outages and reduce the labor intensity of workers;
6. Equipped with intermittent hair pulling function as standard, it can produce more fancy varieties;
7. Optional vacuum system can be equipped to reduce the pollution of flying fluff and improve the working conditions of workers; Avoiding secondary pollution of yarn by flying fluff and improving the quality of fuzzy yarn.
technical parameters
|
Spindle number |
70/77/84/91(每节7锭) |
锭距（mm） Spindle Gauge |
130 |
|
槽筒直径（mm） Groove Roller Diamete |
Φ82 |
槽筒类型 Groove Roller Type |
超塑合金 / 胶木 |
|
筒管度数 Bobbin Degree |
3°30′ 4°20′ |
成纱直径（mm） Max Diameter of Yarn Forming |
280 |
|
最大线速度（m/min） Max Linear Speed |
80 |
起毛系数 Raising Coefficient |
3-20 |
|
纱线支数范围（NM） Yarn Count |
1-30 |
间断拉毛功能 |
标配 |
|
|
|
|
|
|
输入辊电机功率（kW）Input Roller Motor Power |
1 |
起毛辊电机功率（kW） Raising Roller Motor Power |
4 |
|
槽筒电机功率（kW） Groove Roller Motor Power |
1 |
风机电机功率（kW） Fan Motor Power |
2.2/4 |
|
设备长度（m） Machine Length |
4200 |
电源条件 Power |
三相380V、零线、地线Three Phase、zero line and ground wire |
|
设备尺寸 （长×宽×高，mm） |
70锭：11950×861×1976（无吸风版） 77锭：13093×861×1976（无吸风版） 84锭：14236×861×1976（无吸风版） |
||
|
锭数 Spindle number |
128 / 144 |
|
节数 Pitch number |
8 |
|
锭距（mm） Spindle Gauge |
220 |
|
起绒方式 Raising way |
双磨轮 Double grinding wheels |
|
张力控制方式 Tension control mode |
罗拉控制/阻尼张力器控制/六环张力器控制 Roller control/Tensioner conteol |
|
驱动电机类型 The motor type |
伺服电机 Servo motor |
|
纱管尺寸（mm）Conduit xize |
170*42*38 |
|
设备净尺寸（mm）Net size of equipment |
17400*2000(830)*3100 / 19200*2000(830)*3100 |
|
整机功率（kW）Equipment Power |
18.5 / 17 |
