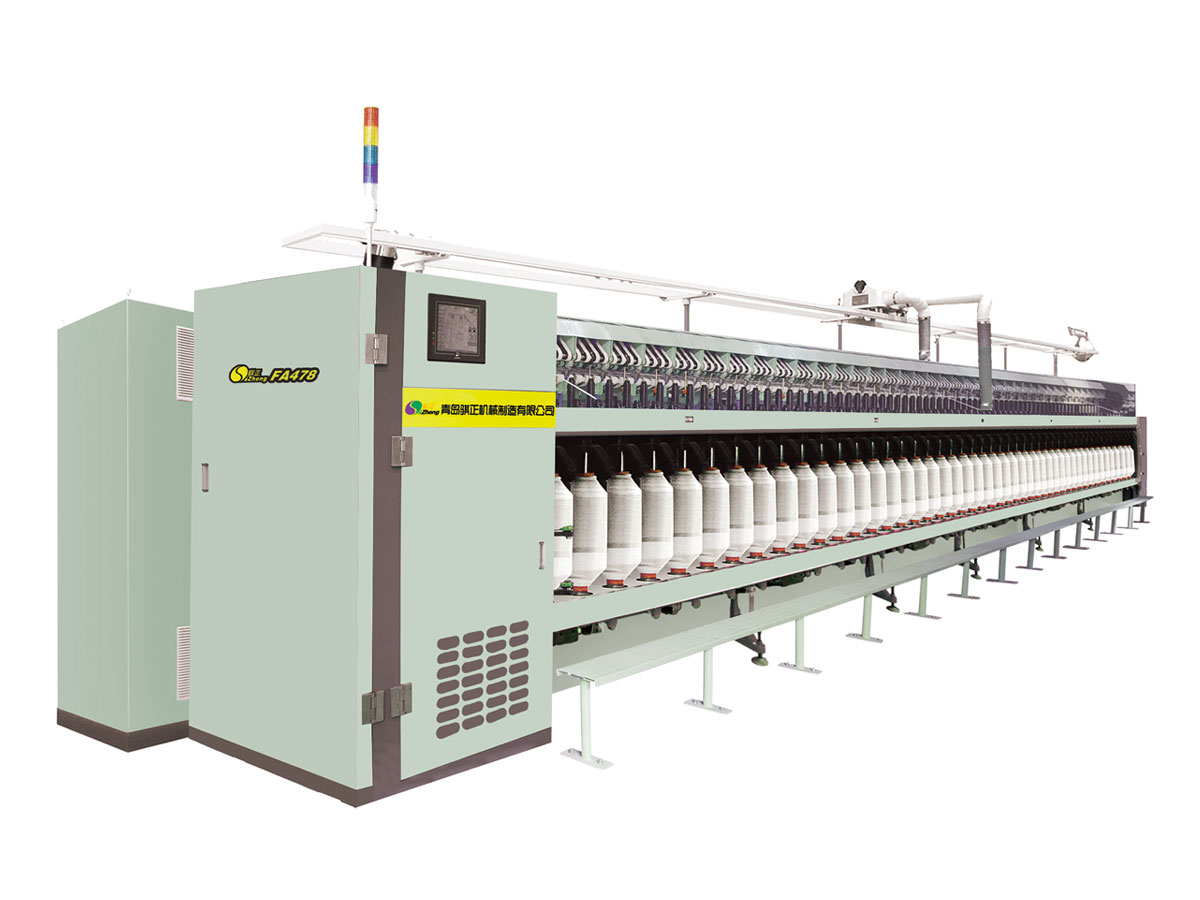

FA478 Cotton Spinning Roving Machine
PRODUCT DESCRIPTION
Product features:
1. Twisting and other process requirements can be easily and efficiently completed by inputting parameters through the human-machine interface.
2. Equipped with power-off protection device and constant tension spinning system, it can greatly improve the quality of the yarn.
3. Equipped with an industrial control system database, it can store mature spinning processes of different varieties and counts, making process adjustments and variety changes convenient and fast.
4. Optimize the design of the front transmission and layout, with a simple front layout, good heat dissipation, and easy installation and maintenance.
5. Optimizing the structure of the stretching section can effectively avoid mechanical waves generated by roller torsional vibration.
6. Adopting cable tray branching wiring, electrical installation is convenient and reduces electrical signal interference.
7. The main transmission adopts synchronous belt transmission, which is smooth, low-noise, and highly efficient.
8. One click restoration of the system is more effective. When the control system software parameters are broken, starting one click restoration can restore to the initial state.
Technical parameter table
|
Spindle gauge(mm) |
220 |
|
Package dimension (mm) |
Φ150*395 |
|
Bobbin dimension (mm) |
Φ45*445 |
|
Spinning fiber length（mm） |
22-76 |
|
Density for fibre（TEX） |
200-2000 (0.5-5 Nm) |
|
Flyer system |
Top spindle closed high-speed flyer |
|
Drafting system |
Four rollers Double short leather ring |
|
Drafting system |
4.43-13.28 |
|
Drafting changing |
Replace the process wheel |
|
Twist range(t/m) |
Software |
|
Twist changing |
Software |
|
Pressing form |
Spring Weighting arm pressing |
|
Bottom roller diameter (mm) |
Φ28.5,Φ28.5,Φ28.5,Φ28.5 / Φ32,Φ32,Φ32,Φ32 |
|
Cleaning device |
Velvet belt cleaning and itinerant air suction device |
|
Transmission device |
Four servo motor drive |
|
Winding/Flyer transmission |
Gear transmission |
|
Winding power shaft |
Universal shaft |
|
Differential device |
None |
|
Reversing device |
Software |
|
Yarn forming angle |
Software |
|
Stop motion |
Broken yarn, broken strip and flying yarn infrared photoelectric automatic stop |
|
Three auto doffing |
Software |
|
Tension adjustment |
Software |
|
Unevenness preventing |
Software |
|
Winding density adjustment |
Software |
|
Can diameter |
Φ400/Φ500/Φ600 |
|
Energy saving suction device |
Standard configuration |
|
Overall dimension |
14960×3560/(4310)×2600mm（120） 16250×3560/(4310)×2600mm（132） 17570×3560/(4310)×2600mm（144） 18890×3560/(4310)×2600mm（156） |
