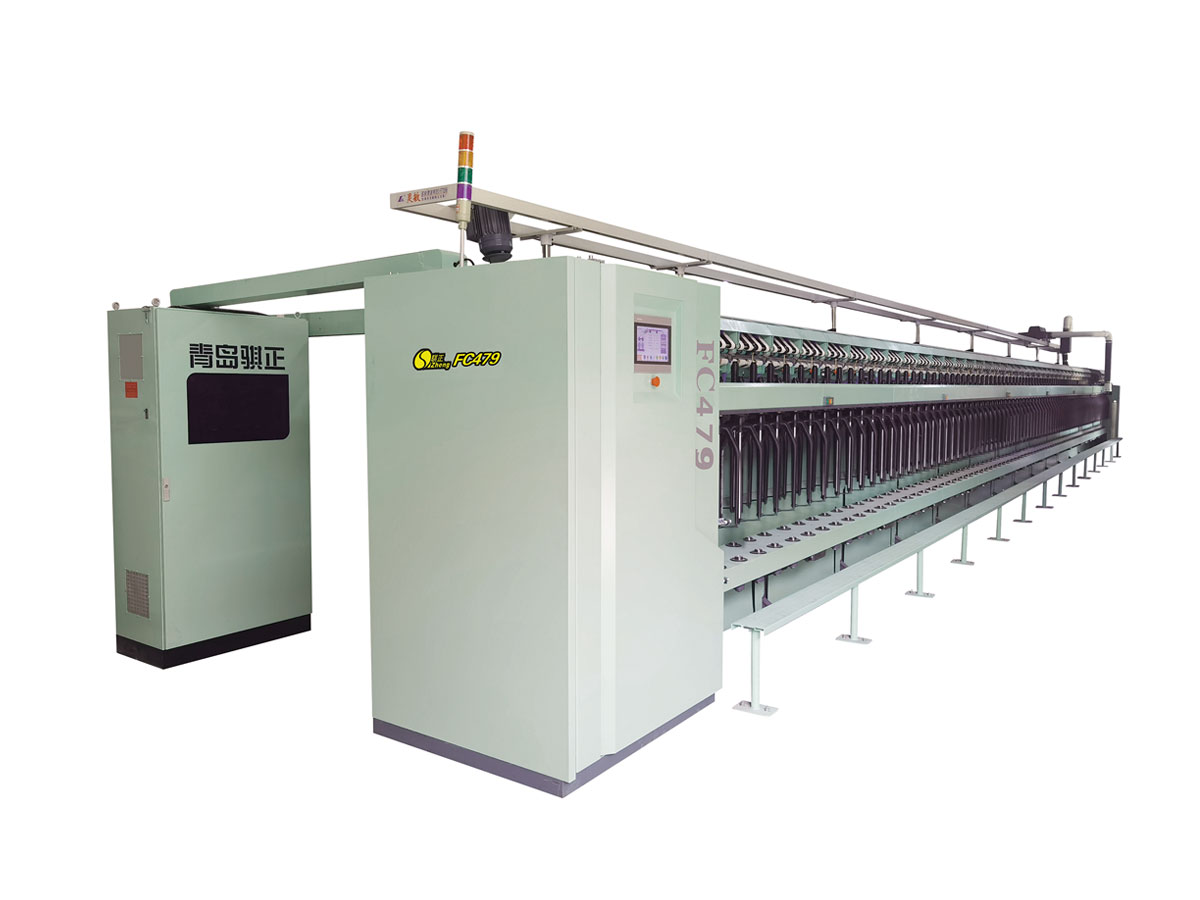

FC479 Universal Roving Machine

FC479 Universal Roving Machine

The FC479 long and short fiber universal roving machine is developed and produced by our company to meet the diverse spinning needs of customers.

DOWNLOAD

PRODUCT DESCRIPTION


The FC479 long and short fiber universal roving machine is developed and produced by our company to meet the diverse spinning needs of customers. It is the first of its kind in the industry, based on traditional cotton and wool roving machine technology. The suitable fiber length range is 30-102mm. This model uses high-precision servo control and other high-tech technologies to achieve electronic stretching of the roving machine. It uses five servo motors to independently drive the five systems of the spindle wing, first and second rollers, third and fourth rollers, tube, and rib lifting. The mechanical main transmission system adopts a circular arc toothed synchronous belt transmission, and the synchronous operation of the five motors is achieved under the control and coordination of the main controller.
Product features:
1. Twisting and other process requirements can be easily and efficiently completed by inputting parameters through the human-machine interface.
2. Realize electronic stretching, which can directly adjust the stretching ratio through the human-machine interface.
3. It can spin special yarns such as large belly yarn.
4. Equipped with power-off protection device and constant tension spinning system, it can greatly improve the quality of the yarn.
5. Equipped with an industrial control system database, it can store mature spinning processes of different varieties and counts, making process adjustments and variety changes convenient and fast.
6. Optimize the design of the front transmission and layout, with a simple front layout, good heat dissipation, and easy installation and maintenance.
7. The redesigned stretching structure allows for a wider range of fibers to be spun, with fiber lengths reaching 30-102mm.
8. Adopting cable tray branching wiring, electrical installation is convenient and reduces electrical signal interference.
9. The main transmission adopts synchronous belt transmission, which is smooth, low-noise, and highly efficient.
10. One click restoration of the system is more effective. When the control system software parameters are broken, starting one click restoration can restore to the initial state.

Technical parameter table

 Spindle gauge(mm)

220

 Package dimension (mm)

Φ150*395

 Bobbin dimension (mm)

Φ45*445

 Spinning fiber length（mm）

38-102

 Density for fiber（TEX）

200-2000 (0.5-5 Nm)

 Flyer system

Top spindle closed high-speed flyer

 Drafting system

Four rollers Double short leather ring

 Drafting system

Software

 Drafting changing

 Software

 Twist range(t/m)

Software

 Twist changing

 Software

 Pressing form

Spring Weighting arm pressing

 Bottom roller diameter (mm)

Φ28.5,Φ28.5,Φ28.5,Φ28.5 / Φ32,Φ32,Φ32,Φ32

 Cleaning device

Velvet belt cleaning and itinerant air suction device

 Transmission device

Five servo motor drive

 Winding/Flyer transmission

  Gear transmission

 Winding power shaft

 Universal shaft

 Differential device

 None

 Reversing device

 Software

 Yarn forming angle

 Software

 Stop motion

Broken yarn, broken strip and flying yarn infrared photoelectric automatic stop

 Three auto doffing

 Software

 Tension adjustment

 Software

 Unevenness preventing

Software

 Winding density adjustment

Software

 Can diameter

Φ400/Φ500/Φ600

 Energy saving suction device

标配Standard configuration

 Overall dimension

14960×3560/(4310)×2600mm

16250×3560/(4310)×2600mm

17570×3560/(4310)×2600mm
