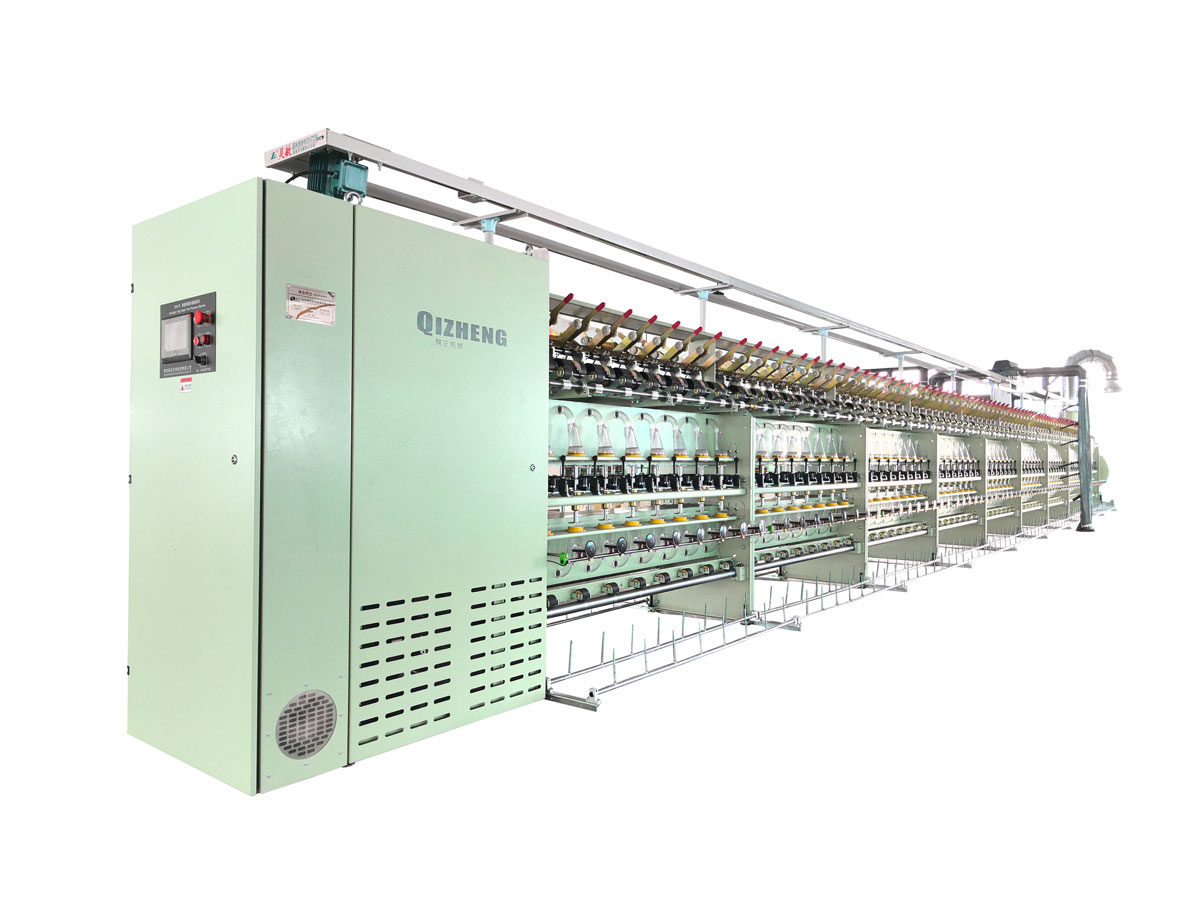

ZKM18 yarn velvet machine

ZKM18 yarn velvet machine

ZKM18 high-speed yarn pilling machine is suitable for pilling fancy yarns and traditional yarns of woolen fibers and other synthetic fibers, especially for pilling treatment of short fiber yarns.

DOWNLOAD

PRODUCT DESCRIPTION


ZKM18 high-speed yarn pilling machine is suitable for pilling fancy yarns and traditional yarns of woolen fibers and other synthetic fibers, especially for pilling treatment of short fiber yarns.
Product features:
1. Spinning speed, twist, tension and other process parameters can be set through the human-machine interface, making process adjustment convenient and fast;
2. Adopting servo motor drive and synchronous belt transmission, the transmission is precise and stable, effectively controlling yarn tension and improving yarn quality;
3. Adopting independently developed patents and dual grinding wheel design, the velvet is more uniform and the spinning speed is faster.
4. Optimized design of the fan, equipped with a muffler, resulting in lower noise and greater energy efficiency.
5. Choose a circulating suction fan to make the work site cleaner and tidier.
6. Segmented control of yarn tension, allowing for free adjustment of yarn tension.
7. There are multiple configurations to choose from according to customer needs, and there is always one that suits you.

Technical Parameter

 Spindle number

128 / 144

  Pitch number

8

  Spindle Gauge

220

  Raising way

Double grinding wheels

 Tension control mode

 Roller control/Tensioner conteol

 The motor type

 Servo motor

 Conduit xize

170*42*38

 Net size of equipment

17400*2000(830)*3100 / 19200*2000(830)*3100

 Equipment Power

18.5 / 17
